Using e-GGRT to Prepare Your Subpart Z Report for RY2014 and Later

This page provides an overview of sub-topics that are central to Subpart Z reporting:

• Facility Level Information
• Process Information For Units Not Monitored by CEMS
• Process Information For Units Monitored by CEMS
• Emissions Information

• Emissions Information for Process Units Monitored by CEMS

• Validation Report

The end of this page contains links you can use for more information on these topics

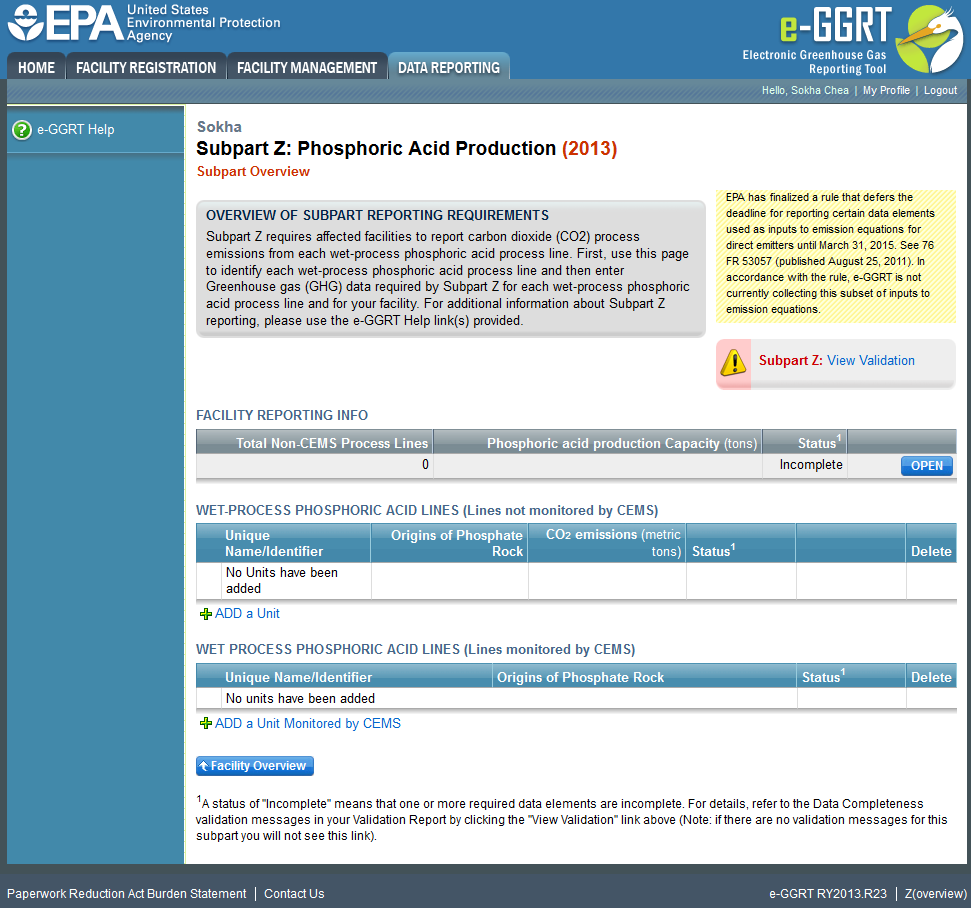

The image below displays the Subpart Z Overview page

Facility Level Information

Subpart Z requires you to report the following data about your facility (wet phosphoric acid process line as defined in §98.260 reporting requirements):

• The total number of wet-process phosphoric acid process lines not monitored by CEMS
• The facility total annual phosphoric acid production capacity

Process Information For Units Not Monitored by CEMS

For each process unit at your facility, report the following required information:

• A unique name or identifier for the unit, plus optional description for this facility (see also About Unique Unit Names)
• Calculation Method Used (Eq. Z-1a or Eq. Z-1b)
• Annual Phosphoric acid production capacity for the unit

For type of phosphate rock used in the unit, report the following required information:

• Origin (select from the pick list)
• Annual amount of Phosphoric acid production produced
• Annual arithmetic average percent inorganic carbon OR the annual arithmetic average percent carbon dioxide (derived from monthly sampling records)
• Annual amount of rock consumed
• Indicate by month:
  • if the inorganic carbon content value was a substitute data value?
  • if yes, the method used to estimate any missing values of inorganic carbon content

  • if the mass consumed value was a substitute data value?

Process Information For Units Monitored by CEMS

For each process unit monitored by a CEMS, report the following required information:

A unique name or identifier for the unit, plus optional description for this facility (see also About Unique Unit Names)

For type of phosphate rock used in the unit, report the following required information:

• Origin (select from the pick list)
• Annual amount of Phosphoric acid production produced
• Annual arithmetic average percent inorganic carbon OR the annual arithmetic average percent carbon dioxide (derived from monthly sampling records)
• Annual amount of rock consumed
• Indicate by month:
  • if the inorganic carbon content value was a substitute data value?
  • if yes, the method used to estimate any missing values of inorganic carbon content

  • if the mass consumed value was a substitute data value?

Emissions Information

• Annual CO2 mass emissions for the wet-process from Phosphoric acid process line

Emissions Information for Process Units Monitored by CEMS

The required emissions information and the manner by which required emissions information is entered into e-GGRT is different for units that are monitored by a Continuous Emissions Monitoring System (CEMS) and units that are NOT monitored by a CEMS.

As a result, separate help content has been created in this subpart for entering emissions information for units monitored by CEMS and units NOT monitored by CEMS.

For each process unit that is NOT monitored by CEMS at your facility, the following emissions information is required on a monthly basis:

• Annual CO₂ mass emissions for the wet-process from Phosphoric acid process line

For each CEMS Monitoring Location, provide the following information:

• A unique unit name or identifier for the CML (see also About Unique Unit Names)
• An optional description or label for the CML
• The configuration of processes or process units that are monitored by the CML:
  • Single process or process unit that exhausts to a dedicated stack
  • Multiple processes or process units that share a common stack
  • Process or process unit that shares a common stack with one or more stationary fuel combustion units
• The name of each fuel combusted in the unit(s) monitored by the CEMS
• The Tier 4/CEMS methodology start and end dates
• The cumulative total of hourly CO₂ mass emissions for each quarter of the reporting year (metric tons) (Do not cumulate emissions data between quarters)
• The total annual CO₂ mass emissions measured by the CEMS (metric tons)
• An indication whether emissions reported for the CEMS include emissions calculated according to 98.33(a)(4)(viii) for a slipstream that bypassed the CEMS
• The total annual biogenic CO₂ emissions from the combustion of all biomass fuels combined (metric tons) (if applicable)
• The total annual non-biogenic CO₂ emissions which includes fossil fuel, sorbent, and process CO₂ emissions (metric tons)
• The total annual CH₄ and N₂O emissions associated with the combustion of all Table C-2 fuels combusted in all processes/process units monitored by the CEMS derived from application of Equation C-10 (metric tons) (if there are no combustion emissions in this CML, please enter zero)
• The total number of source operating hours in the reporting year
• The total operating hours in which a substitute data value was used in the emissions calculations for the CO₂ concentration parameter
• The total operating hours in which a substitute data value was used in the emissions calculations for the stack gas flow rate parameter
• If moisture correction is required and a continuous moisture monitor is used, the total operating hours in which a substitute data value was used in the emissions calculations for the stack gas moisture content parameter
• An indication of the process units monitored by the CML

Do not leave any of these fields blank. If, for example, your facility has no biogenic CO₂ emissions, enter 0.

Validation Report

The Validation Report assists you with determining the completeness and quality of your reported data.

We strongly encourage you to use the Validation Report to check your work. The Validation Report performs two types of checks:

• Data Completeness: Data required for reporting that are missing or incomplete.
• Data Quality: Data that are outside of the expected range of values.

Certain validation checks which are considered to represent critical errors must be corrected before you can successfully generate and submit your Annual Report. These checks are signified with a stop sign . If you feel that you have triggered one of these critical “stop signs” checks in error, or if there’s a reason why your report should be submitted despite the check being triggered, please submit a request to the e-GGRT Help Desk at GHGReporting@epa.gov.

You may view the Validation Report at any time.
